ORDER CODE 100A

FROZEN WHITE

EBONY, CLOTH FRONT BUCKET SEATS

HEAVY DUTY BATTERY

WHEELS: 16" SHADOW SILVER-PAINTED STYLED STEEL

2ND ROW FIXED GLASS ON PASSENGER SIDE DOOR ONLY

REAR DOOR FIXED GLASS

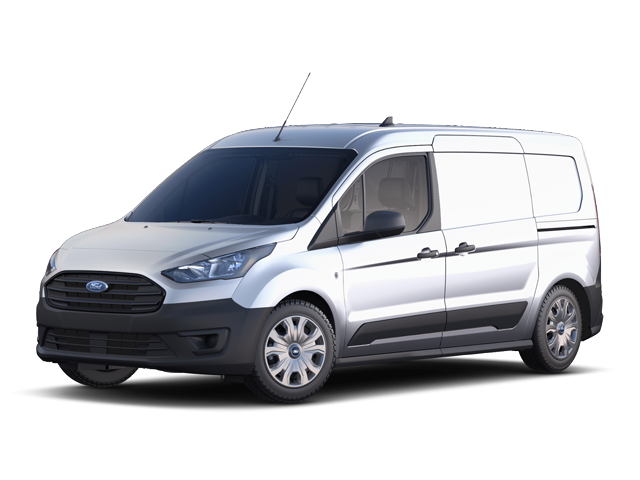

Vehicle Name - Ford Transit Connect Van

Body Style - Cargo Van LWB

Body Code - V

Drivetrain - Front Wheel Drive

Passenger Capacity - 2

Base Curb Weight (lbs) - 3690

Gross Axle Wt Rating - Front (lbs) - 2700

Gross Axle Wt Rating - Rear (lbs) - 2875

Curb Weight - Front (lbs) - 2204

Curb Weight - Rear (lbs) - 1485

Gross Vehicle Weight Rating Cap (lbs) - 5302

Fuel Economy Est-Combined (MPG) - 25

EPA Fuel Economy Est - City (MPG) - 24

EPA Fuel Economy Est - Hwy (MPG) - 27

Dead Weight Hitch - Max Trailer Wt. (lbs) - 2000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 200

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 2000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 200

Maximum Trailering Capacity (lbs) - 2000

Engine Order Code - 992

Engine Type - Regular Unleaded I-4

Displacement - 2.0 L/122

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 162 @ 6200

SAE Net Torque @ RPM - 144 @ 4500

Trans Order Code - 446

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 3.31

Third Gear Ratio (:1) - 3.01

Fourth Gear Ratio (:1) - 1.92

Fifth Gear Ratio (:1) - 1.45

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 2.96

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 800

Cold Cranking Amps @ 0? F (2nd) - 800

Tons/yr of CO2 Emissions @ 15K mi/year - 7.0

Maximum Alternator Capacity (amps) - 220

Engine Oil Cooler - None

Suspension Type - Front - Strut

Suspension Type - Rear - Torsion Beam

Axle Type - Front - Independent

Axle Type - Rear - Semi-Independent

Axle Ratio (:1) - Front - 3.21

Axle Ratio (:1) - Rear - 3.21

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P215/55HR16

Rear Tire Size - P215/55HR16

Spare Tire Size -

Front Wheel Size (in) - 16 X 6.5

Rear Wheel Size (in) - 16 X 6.5

Spare Wheel Size (in) -

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material -

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 40

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Drum - Rear (Yes or ) -

Fuel Tank Capacity, Approx (gal) - 15.8

Front Head Room (in) - 46.9

Front Leg Room (in) - 41.5

Front Shoulder Room (in) - 57.6

Front Hip Room (in) - 54.2

Wheelbase (in) - 120.6

Length, Overall (in) - 190

Width, Max w/o mirrors (in) - 72.2

Height, Overall (in) - 72

Ground to Top of Load Floor (in) - 22.9

Ground Clearance, Front (in) - 5.6

Ground Clearance, Rear (in) - 5.6

Rear Door Type - Split Swing-Out

Side Door Type - Sliding

Cargo Area Length @ Floor to Seat 1 (in) - 87.6

Cargo Box Width @ Wheelhousings (in) - 48.7

Cargo Box (Area) Height (in) - 49.8

Cargo Volume (ft?) - 145.8

Seventh Gear Ratio (:1) - 0.75

Eighth Gear Ratio (:1) - 0.62

Model Group - Transit Connect

Vehicle Segment - Large Van

Vehicle Type - Cargo Van

Body Cab Style - Cargo Van

Engine Displacement Units - 2.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Turkey
